GF100 - 10 t - 2 mot fr drive 4 wheels
Technical issues
| Max capacity | 10.000 kg |
| Chassis dimensions (L x W x H) | |
| Steering radius | 3260 mm |
| Weight (about) | 10.000 kg + 1800 kg (counterweight) |
| Telescopic boom | Full hydraulic, 3 sections, box boom |
| Steering | rear hydraulic steering |
| Tyres | 2 solid rear 23 x 9 - 10 4 solid front 250 - 15 |
| Drive system | Front with 2 motors on front axles, with counter rotation operated by high performance AC electronic controllers |
| Brakes | Disk brakes on front axle (on demand on rear axle) |
| Electrical option | Standard AC |
| Drive Motors | 11.3 KW - AC x 2 motors |
| Power surce | 80V 640 Ah |
| Standard equipment | Digital safe load indicator with display, joystick controlled proportional distributor, reversing alarm, seat sensor and seatbelt, worklight. |
| Optional equipment | Searcher hook, jib, forks, operator platform (Multis), low marking tyres, radio remote control.Other equipment available. |
Download and print .pdf file
TopImages

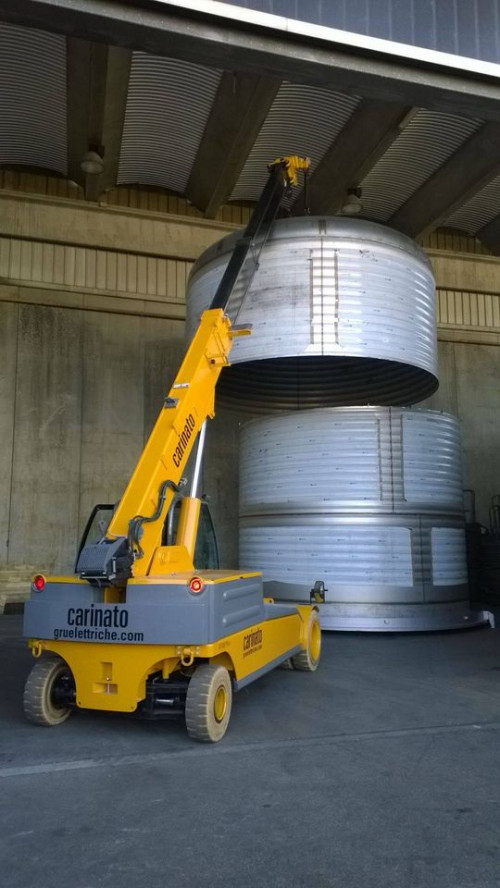

carinato gf100 10

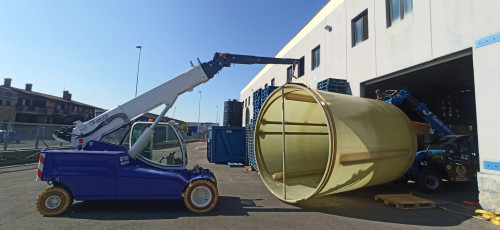

GF100 3 Anto

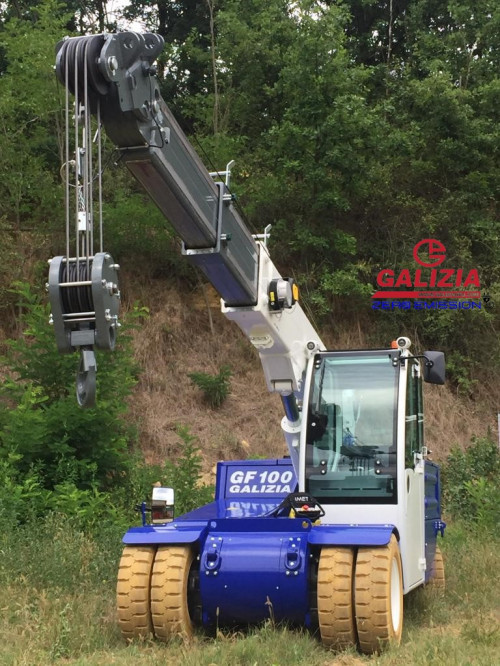

GF100 ikran

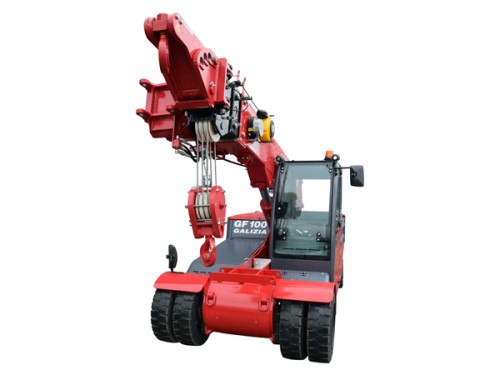

GF100-Featured-Image
