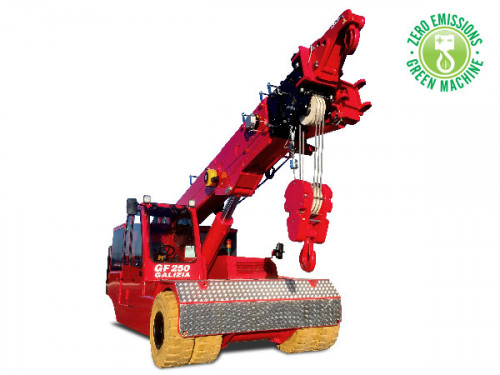

GF250 - 25 t - 2front mot radio 4 wheels

25 t - 2front mot radio 4 wheels
Top

Technical issues

Max capacity 25.000 kg
Chassis dimensions (L x W x H) 4500 mm x 2.170 mm x 2130 mm
Steering radius 4.190 mm
Weight (about) 26.000 kg
Telescopic boom Full hydraulic, 3 sections, box boom
Steering Rear hydraulic 180 ┬░
Tyres 2 solid rear, 4 solid front 355 / 65 - 15
Drive system Front with 2 motors on front axles with counter rotation controlled by high performance electronic controllers, about 6 km / h
Brakes On front and rear axles
Electrical option Standard
Drive Motors 16 kW x 2 (16 kW right front axle + 16 kW left front axle)
Power surce 96V - 1240 Ah
Standard equipment Digital safe load indicator with display, shut-off valve, proportional distributor joystick-controlled, reversing alarm, seat sensor and seatbelt, work light, emergency button.
Optional equipment Searcher hook, hydraulic jib, full winch system, auto-levelling telehandler forks, low marking tyres, radio remote control, other on demand.
